Microchip 12C508A

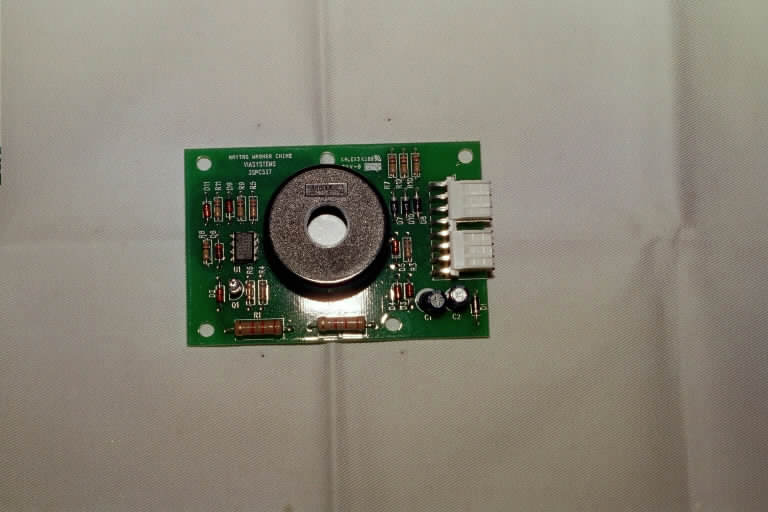

Clothes washer chime assembly


 White Goods
Chimes at end of cycle at 3.1 KHz
  • Uses Microchip PIC 12C508A


  • I/O remapped from original design for efficinet PCB layout


  • Cost reduced design saved $$$


  • Operates at both 110 VAC and 220 VAC


  • Small size


    		•

    Clothes washer chime assembly
